LigaForce
GENERAL

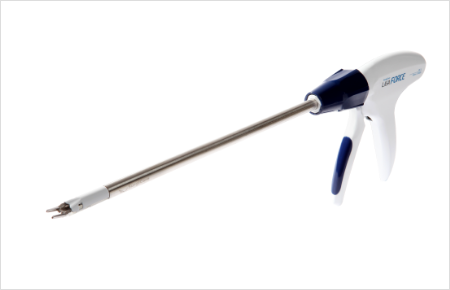

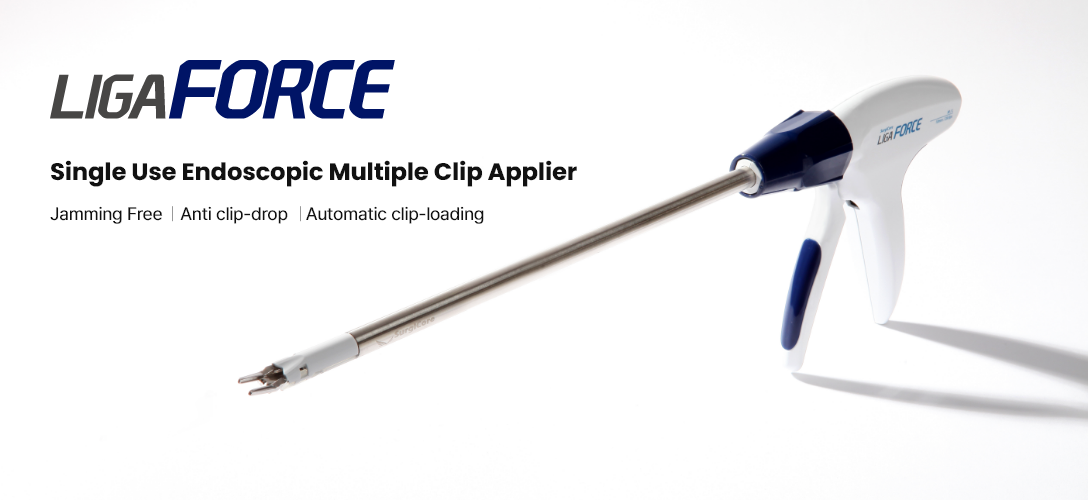

The LigaForce, single use endoscopic multiple clip applier is intended for use on tubular structures or vessels wherever a metal ligating clip is indicated. The LigaForce Ø10mm multiple clip applier contains 20 titanium clips of the M/L size
The appliers are designed for introduction and use through all appropriately sized trocar sleeves, or larger sized trocar sleeves with the use of a converter.
FEATURES
Convenience
- 340mm shaft, the longest working shaft length in the 10mm clip applier market, provided access to structures in larger patients without changing to the other trocar site.
Protection

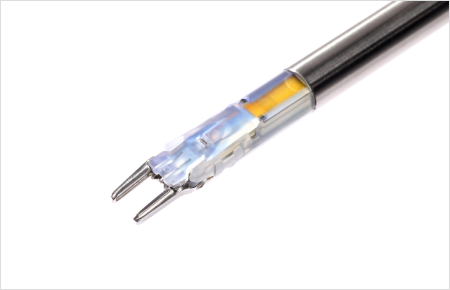

- The LigaForce features a clear shaft, which allows visibility of the clips remaining. It also features a yellow bar which appears at the jaw when the applier is getting empty. The safety interlock feature prevents damage to tissue by preventing jaw closure when the instrument is empty.

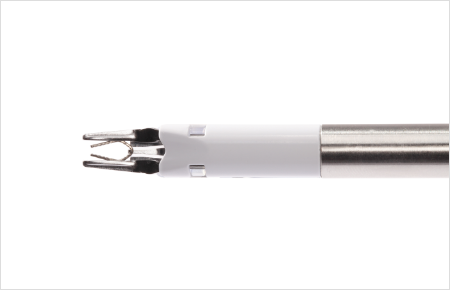

Anti clip drop system
- Thanks to the mechanical structure of LigaForce, it allows partial closing and release of clip without dropping from jaw.

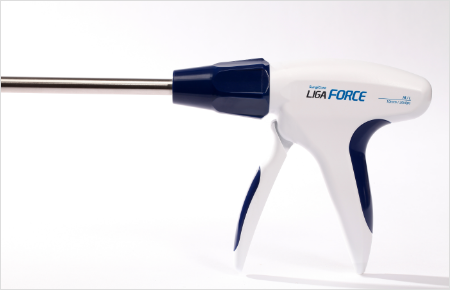

Ergonomic grip design
- Ergonomic and comfortable grip design including 360°rotation knob/shaft allows easy rotation and one-handed use.
Video
ORDERING INFORMATION
| Model No. | size | Description | Units/box | Units/carton |
|---|---|---|---|---|
| LF10-ML20 | M/L | LigaForce, single use endoscopic multiple clip applier Ø10mm x 340mm, M/L size 20 titanium clips pre-loaded |
1units | 12units |
