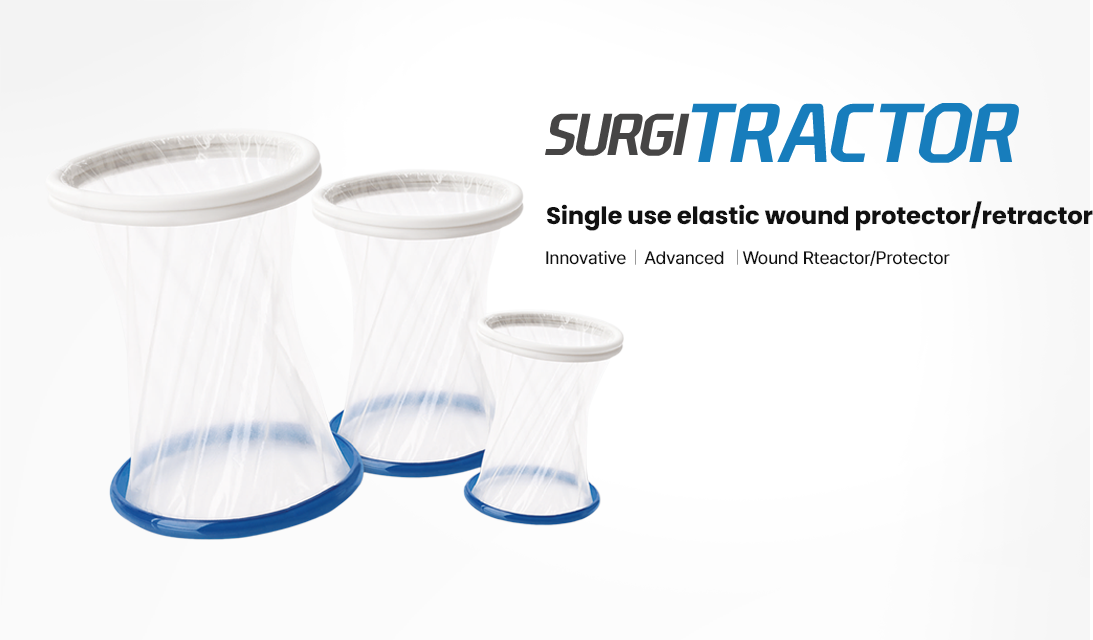

SurgiTractor
GENERAL
SurgiTractor designed to achieve the maximum opening with minimum incision maintaining proper moisture and protecting the contamination of the incised wound.
FEATURES
Maximum opening with minimum incision
- Thanks to the structure of upper ring of SurgiTractor, it gives the power to maintain the pure circle when it is placed on the operating site.

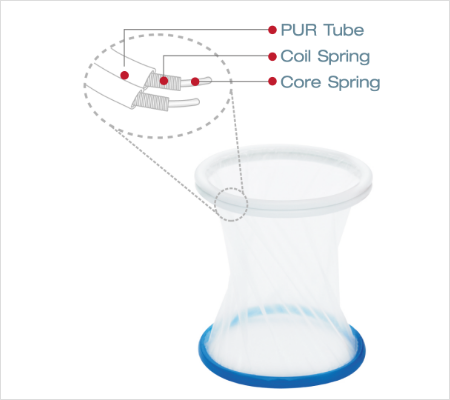

Easy to fold
- Due to the Coil Spring inside of the upper tube, the operator can easily fold the elastic film over the upper tube during the retracting stage.

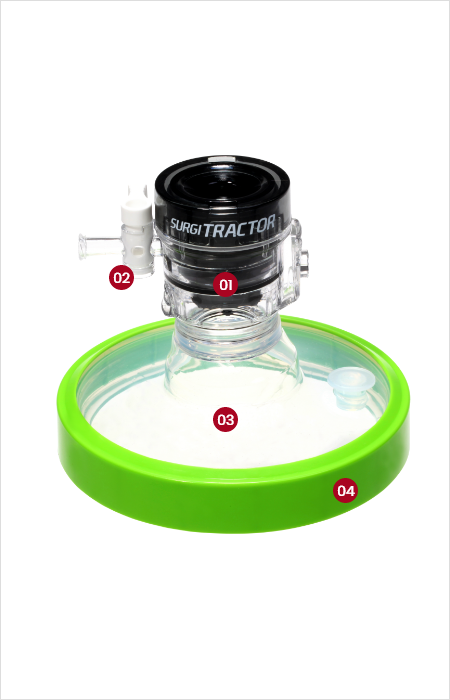

0112mm port attached on the cover
- Allow to introduce a 5mm~12mm diameter instrument without the gas leakage.
022Way Gas Port
- Injecting or evacuating the insufflation gas to/from the peritonea area.
03High transparency silicone cover
- The operator can have the clear view of opening area through the cover and it helps to insert the instrument safely into the peritoneal area.
04Easy to attach and detach the cover to the retractor
- The operator can attach and detach the cover within a few second very easily.
Video
ORDERING INFORMATION
| Model No. | Size | Description(Recommended incision size) | Contents | |
|---|---|---|---|---|
| Inbox(ea) | Cartonbox(ea) | |||
| ST0103 | XX-Small | SurgiTractor, Disposable elastic wound retractor (1cm~3cm) | 10 | 120 |
| ST0204 | X-Small | SurgiTractor, Disposable elastic wound retractor (2cm~4cm) | 10 | 120 |
| ST0306 | Small | SurgiTractor, Disposable elastic wound retractor (3cm~6cm) | 10 | 100 |
| ST0509 | Medium | SurgiTractor, Disposable elastic wound retractor (5cm~9cm) | 8 | 80 |
| ST0914 | Large | SurgiTractor, Disposable elastic wound retractor (9cm~14cm) | 8 | 48 |
| ST1117 | X-Large | SurgiTractor, Disposable elastic wound retractor (11cm~17cm) | 5 | 20 |
| ST1725 | XX-Large | SurgiTractor, Disposable elastic wound retractor (17cm~25cm) | 6 | 12 |
| ST0306K | Small | SurgiTractor, Kit for a small incision(3cm~6cm), Contents: 1unit of small size wound retractor and a silicone cover |
6 | 36 |
| ST0306KB | Small | SurgiTractor, Kit for a small incision(3cm~6cm), Contents: 1unit of small size wound retractor and a silicone cover with a hook type cover-ring |
6 | 36 |
Accessary
| Model No. | Size | Description(Recommended incision size) | Contents | |
|---|---|---|---|---|
| Units/box | Units/carton | |||
| STC0306 | Small | Silicone cover includes a sealed 12mm port and a Gas Port for ues with ST0306 |
6 | 36 |
